The emergency exit

The emergency exit of the machine is located on the right-hand side of the cabin.

  1. Move the lever (2) UPWARDS and push the door.

    The glass opens slightly. This play can be used for ventilation in the cabin.

  2. Pull the lever forwards (B), and push the door further open against the stop (1).

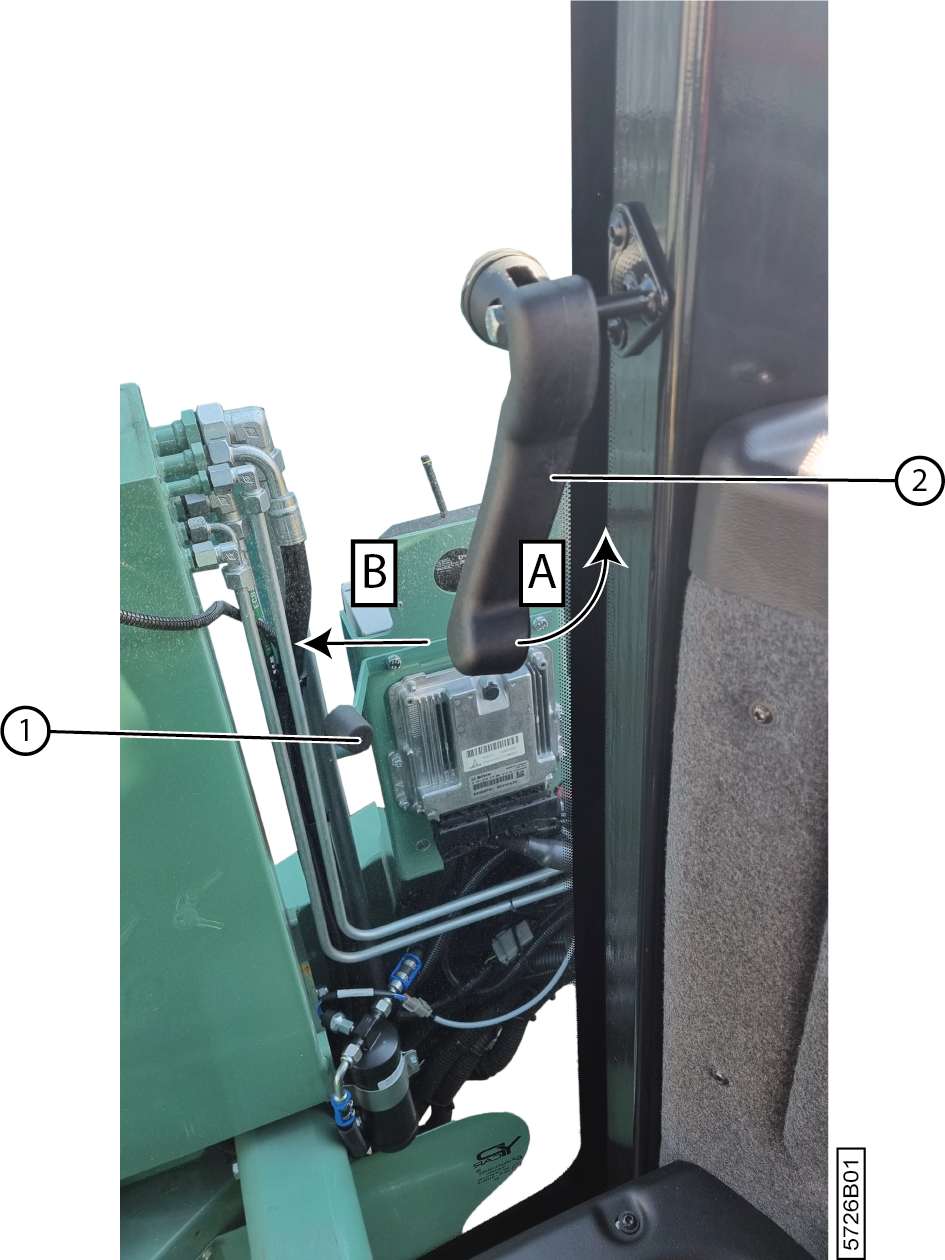

Figure 1. The emergency exit
